Introduction
Sheet metal bending is a fundamental manufacturing process used to shape metal sheets into desired angles or forms. It plays a crucial role in industries such as automotive, aerospace, construction, and electronics, where precision and durability are essential. The process involves applying force to a metal sheet to cause deformation without altering its thickness.
With advancements in technology Sheet Metal Bending has evolved to incorporate automated machines, CNC controls, and high-precision tools, improving accuracy and efficiency. This article explores the different methods, tools, applications, and challenges of sheet metal bending.
Basics of Sheet Metal Bending
Sheet metal bending is a cold-forming process where metal is shaped by applying force along a defined axis. The process relies on elasticity and plasticity, meaning the metal first bends elastically and then plastically until it achieves the required angle.
Key Factors Affecting Bending
Several factors influence the success of sheet metal bending, including:
- Material type – Metals like aluminum, stainless steel, and brass have different bending properties.
- Thickness – Thicker sheets require more force and larger bending radii.
- Bend angle – The required angle affects the tool selection and force applied.
- Springback – Metal tends to return to its original shape after bending, requiring adjustments.
- Grain direction – Bending along the grain can lead to cracking or reduced strength.
Understanding these factors helps manufacturers achieve accurate and consistent bends.
Common Sheet Metal Bending Methods
There are multiple techniques for bending sheet metal, each suited for different applications and levels of precision.
1. Air Bending

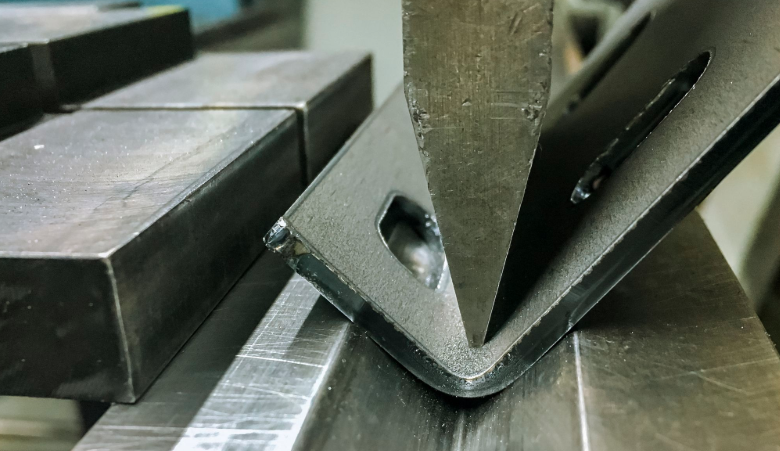

Air bending is one of the most common methods, where the sheet is placed over a die with a V-shaped opening, and a punch presses down to create the bend. The metal does not fully contact the die, allowing for adjustable angles with a single tool.
Advantages:
- Requires less force compared to other bending techniques.
- Allows for flexible angle adjustments.
- Reduces tool wear, increasing durability.
2. Bottoming (Bottom Bending)
In this process, the sheet is pressed firmly into the die until it fully conforms to the die shape. It requires higher force than air bending but results in greater accuracy and reduced springback.
Advantages:
- Produces consistent bends.
- Less angle variation, making it suitable for high-precision applications.
3. Coining
Coining is a high-pressure bending technique where the punch and die create a permanent deformation in the metal. This process eliminates springback and results in extremely precise bends.
Advantages:
- High accuracy with minimal deviations.
- No need for angle corrections after bending.
However, coining requires significant force and specialized machinery, increasing production costs.
4. Roll Bending
This technique involves passing the metal sheet through three rollers to gradually shape it into a curved or cylindrical form. It is widely used in industries that require rounded metal parts, such as tanks, pipes, and enclosures.
Advantages:
- Ideal for creating large radius bends.
- Suitable for thin and thick metal sheets.
5. Rotary Bending
Rotary bending uses a rotating tool to create precise bends without scratching or damaging the sheet metal surface. This method is ideal for delicate materials like polished stainless steel or pre-coated sheets.
Advantages:
- Prevents surface damage.
- Produces highly accurate bends.
Tools Used in Sheet Metal Bending
The success of sheet metal bending depends on the tools and equipment used.
1. Press Brakes
Press brakes are hydraulic or CNC-controlled machines that apply force through a punch and die setup. They are widely used for high-precision bending in mass production.
2. Bending Dies
Different types of dies are used depending on the bend angle and material thickness. These include:
- V-dies for standard bending.
- U-dies for larger radius bends.
- Wipe dies for sharp edges.
3. Roll Bending Machines
These machines use multiple rollers to gradually bend metal into curved shapes. They are used for large sheet metal applications, such as pipes, enclosures, and aircraft components.
4. Folding Machines
Folding machines use a clamping bar and folding beam to create straight, uniform bends. They are commonly used in industries requiring precision sheet metal enclosures.
Applications of Sheet Metal Bending
Sheet metal bending is widely used in multiple industries due to its versatility, cost-effectiveness, and precision.
1. Automotive Industry
Car manufacturers use bent sheet metal for body panels, chassis components, brackets, and engine parts. Bending allows for lightweight yet durable vehicle structures.
2. Aerospace Sector
Aircraft parts require high-strength, lightweight metal components. Bending techniques are used to create wings, fuselage components, and support structures.
3. Electronics and Appliances
Sheet metal bending is essential for making electrical enclosures, casings, and metal frames in consumer electronics and home appliances.
4. Construction and Architecture
Metal roofing, decorative panels, HVAC ducts, and support beams are made using advanced bending processes.
5. Medical Equipment
Precision bending is used for surgical instruments, hospital beds, and diagnostic equipment, ensuring high durability and hygiene standards.
Challenges in Sheet Metal Bending
Despite its advantages, sheet metal bending comes with challenges that require careful planning and precision.
1. Springback Effect
After bending, the metal tends to return slightly to its original shape due to elasticity. This requires adjustments in the bending angle to achieve accurate results.
Read also: Watchlist Screening: A Critical Compliance Measure for Businesses in 2025
2. Material Cracking
Some metals, especially brittle materials, may develop cracks along the bend line. This issue can be minimized by using proper tooling, lubrication, and selecting the right grain direction.
3. Thickness Variations
Inconsistent thickness in the metal sheet can lead to uneven bends, affecting product quality. Ensuring uniform material thickness is crucial for precision bending.
4. Tool Wear and Maintenance
Repeated use of bending tools can lead to wear and tear, affecting accuracy. Regular inspection, maintenance, and replacement of tools are necessary for long-term efficiency.
Innovations in Sheet Metal Bending
Advancements in technology have led to improved bending techniques with greater precision and automation.
1. CNC-Controlled Bending
Modern press brakes come with CNC controls, allowing operators to input exact bend angles and automatically adjust tooling. This enhances repeatability and efficiency.
2. Laser-Assisted Bending
Some advanced systems use lasers to guide bending angles, reducing human errors and improving accuracy.
3. AI and Machine Learning Integration
Artificial intelligence is being used to predict material behavior, reduce errors, and optimize bending processes, making sheet metal forming more efficient.
Conclusion
Sheet metal bending is a critical manufacturing process that enables the creation of complex metal components with high accuracy and strength. With multiple bending techniques, advanced machinery, and innovative technology, manufacturers can achieve precision, efficiency, and cost-effectiveness.
As industries continue to evolve, the integration of automation, AI, and CNC systems will further enhance the capabilities of sheet metal bending, making it an indispensable technique in modern manufacturing.
